Custom build - 2020 Westfalia Club Joker 4Motion - Offroad build thread

[Webbah_in_Switzerland]

Interesting tow bar hitch design. Whats the purpose for the articulation?

So I can mount my bike rack (Thule Epos) and the handle bars don’t hit the box. Also allows you to swing outwards to open the hatch instead of tilting down.


Sent from my iPhone using Tapatalk



[Corradobrit]

So I can mount my bike rack (Thule Epos) and the handle bars don’t hit the box. Also allows you to swing outwards to open the hatch instead of tilting down.


Sent from my iPhone using Tapatalk

Very cool



[Webbah_in_Switzerland]

Very cool

It’s really handy. I also have a storage box for the hitch and when that’s fully loaded it’s much easier to swing to the side versus tilting down. Never enough storage with 2 young kids!


Sent from my iPhone using Tapatalk



[Tarquers]

It’s really handy. I also have a storage box for the hitch and when that’s fully loaded it’s much easier to swing to the side versus tilting down. Never enough storage with 2 young kids!


Sent from my iPhone using Tapatalk

What’s the make of the swing out setup? Only seen them for a US style hitch before, easy enough to fit?



[Webbah_in_Switzerland]

What’s the make of the swing out setup? Only seen them for a US style hitch before, easy enough to fit?

Here you go! Super easy to mount as it mounts on your existing towball. Supports a maximum of 65Kg.

SpaceMaker der Adapter für deinen Fahrradträger | pick-up-and-go

Mit dem SpaceMaker können zwei Fahrräder einfach 90° weggeschwenkt werden und bieten so vollen Zugang zum Heck deines Fahrzeuges.

www.pick-up-and-go.ch

Sent from my iPhone using Tapatalk



[Tarquers]

Here you go! Super easy to mount as it mounts on your existing towball. Supports a maximum of 65Kg.

Thanks. That makes so much more sense than anything else for bikes. Time for shopping (again)



[Webbah_in_Switzerland]

Thanks. That makes so much more sense than anything else for bikes. Time for shopping (again)

Absolutely! When you order you need to decide if you want to swing left or swing right. I have a LHD so I swing right so the bikes are curbside if parked on a street and also near the sliding door. The choice is yours.


Sent from my iPhone using Tapatalk



[Tarquers]

Also LHD but I need to think about what works. Assume you leave it on all the time? Does it affect parking sensors?



[Webbah_in_Switzerland]

Also LHD but I need to think about what works. Assume you leave it on all the time? Does it affect parking sensors?

Yes, the rear camera works fine but you will have a beep in the rear. Doesn’t bother me as I prefer to leave it on ready to go. You really need to torque it down firmly with a wrench on the existing towball.


Sent from my iPhone using Tapatalk



[wildslammer22]

Here you go! Super easy to mount as it mounts on your existing towball. Supports a maximum of 65Kg.

SpaceMaker der Adapter für deinen Fahrradträger | pick-up-and-go

Mit dem SpaceMaker können zwei Fahrräder einfach 90° weggeschwenkt werden und bieten so vollen Zugang zum Heck deines Fahrzeuges.

www.pick-up-and-go.ch

Sent from my iPhone using Tapatalk

I wonder if it’s possible to mount a tyre carrier to it?


Sent from my iPhone using Tapatalk



[Webbah_in_Switzerland]

I wonder if it’s possible to mount a tyre carrier to it?


Sent from my iPhone using Tapatalk

Anything less than 65Kg that can mount on a normal towball should work fine.


Sent from my iPhone using Tapatalk



[Webbah_in_Switzerland]

These just arrived. Need to clean the van and test them tomorrow! @wildslammer22

Sent from my iPhone using Tapatalk



[wildslammer22]

These just arrived. Need to clean the van and test them tomorrow! @wildslammer22

Sent from my iPhone using Tapatalk

I’d be interested to hear your thoughts. I have been impressed so far.



[Webbah_in_Switzerland]

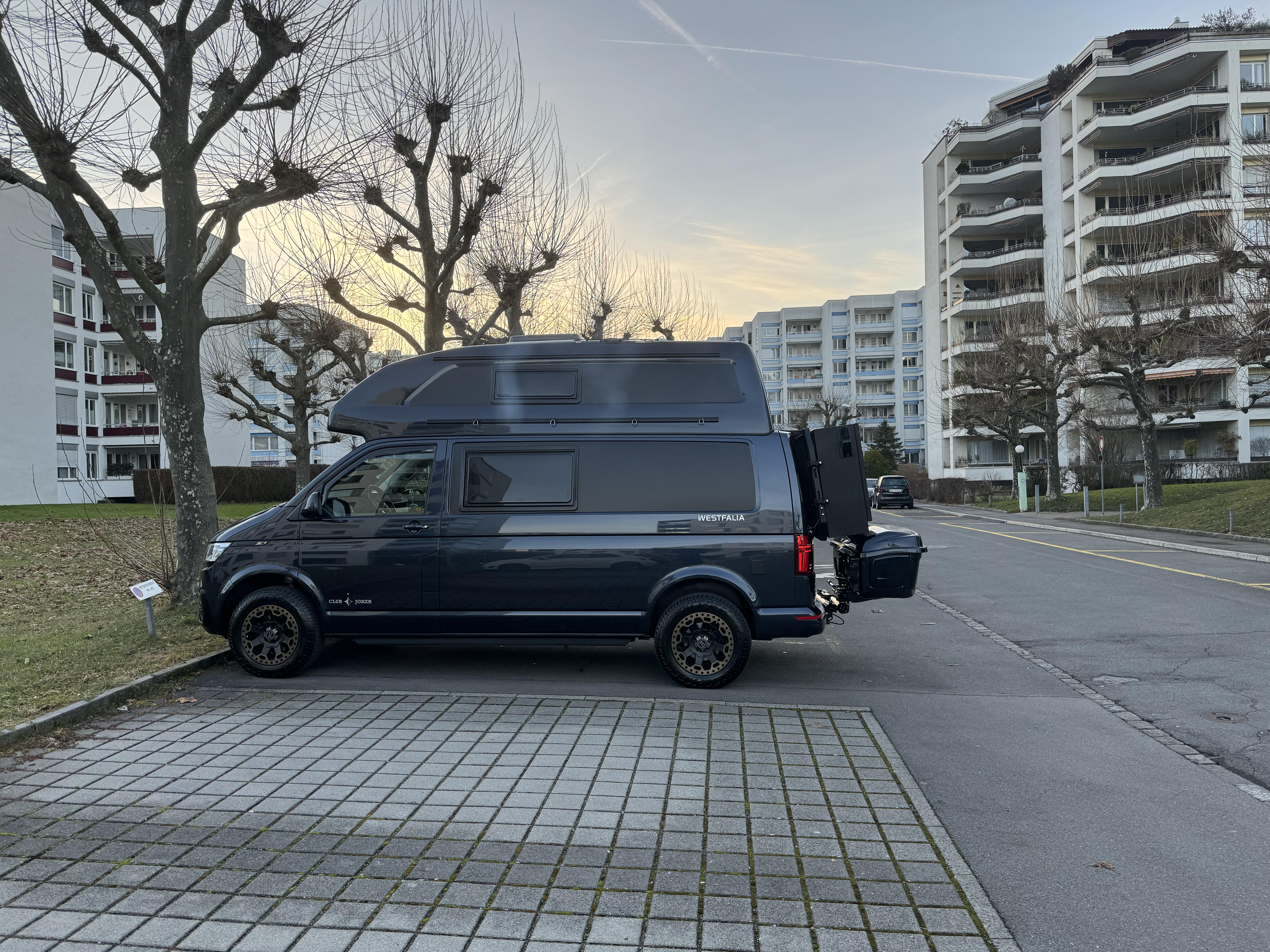

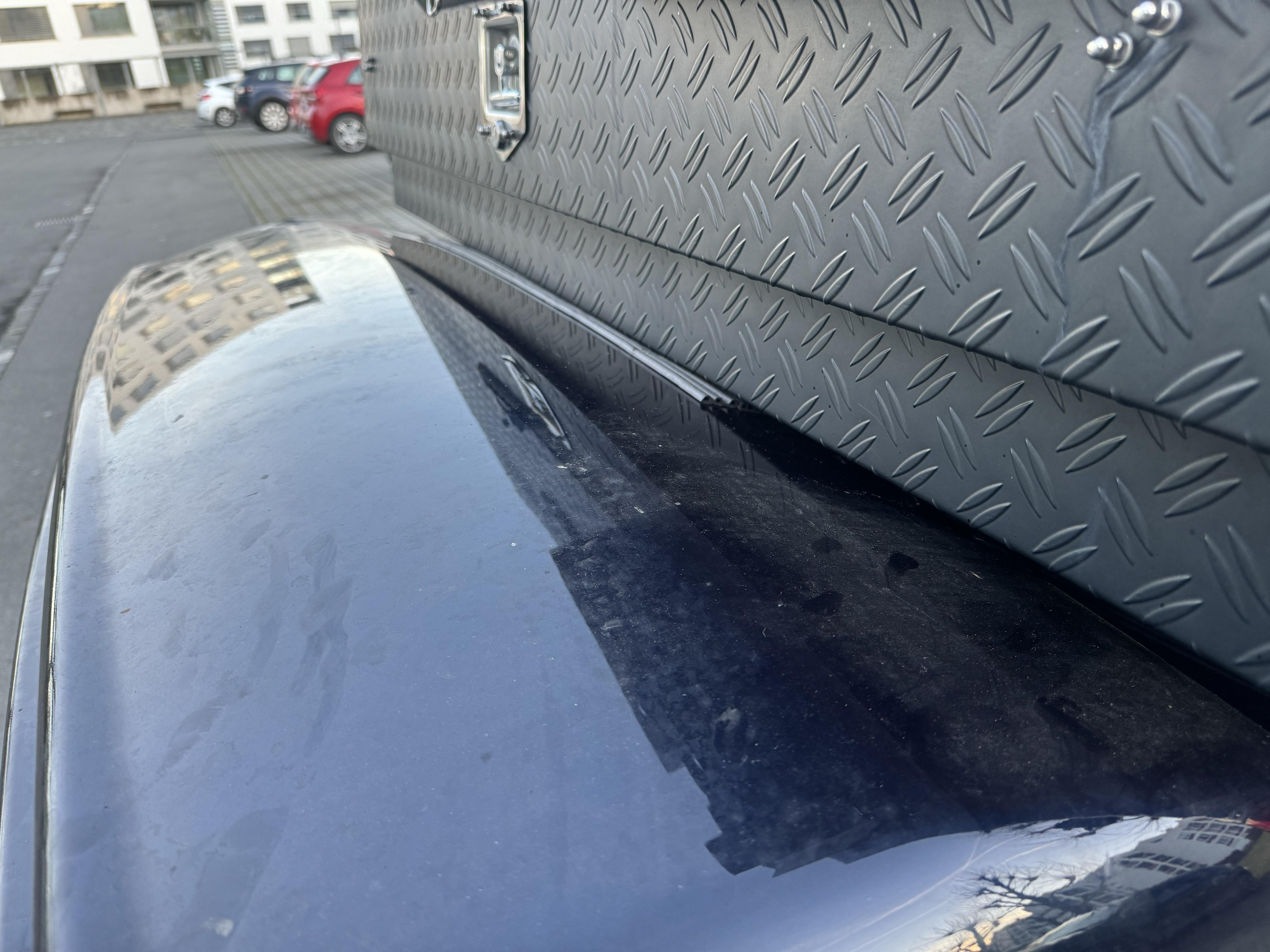

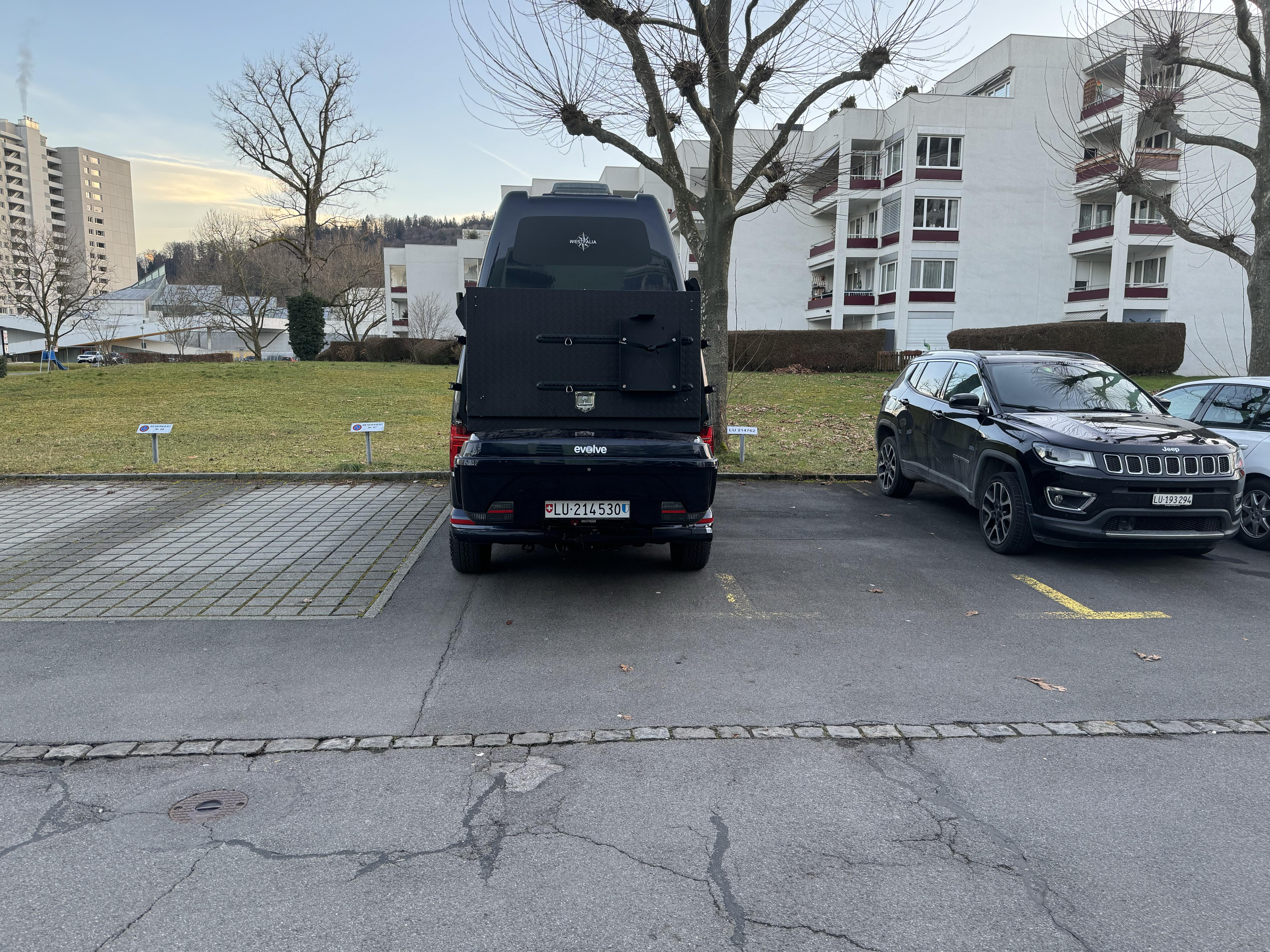

Haven’t used my MFT backbox since I got the Hess Heckbox and the swing away. Managed to fit it but man was that a tight fit! Had to use some rubber seals on the top to prevent scratching but it works!

Sent from my iPhone using Tapatalk



[Webbah_in_Switzerland]

Finally a sunny day to test some Solar! I've deployed the following today:

- 200 Watts on the roof fixed
- 220 Watt Ecoflow bifacial panel hanging from the airline rail on the side of the van
- 420 Watt PowerOak panel on the ground
Total 840 Watts deployed.

Winter is a struggle due to the angle of the sun as many know. Roof panels sit flat and therefore struggle with this angle. I'm really pleased with the Ecoflow panel as it's getting excellent power. I'm a little disappointed with the PowerOak panel as it is barely keeping up with the EcoFlow even though it has double the power potential. Next time I will instead bring a 400 watt Ecoflow panel to replace the PowerOak as it's sitting in my garage.



View attachment IMG_4664.jpeg



[Tarquers]

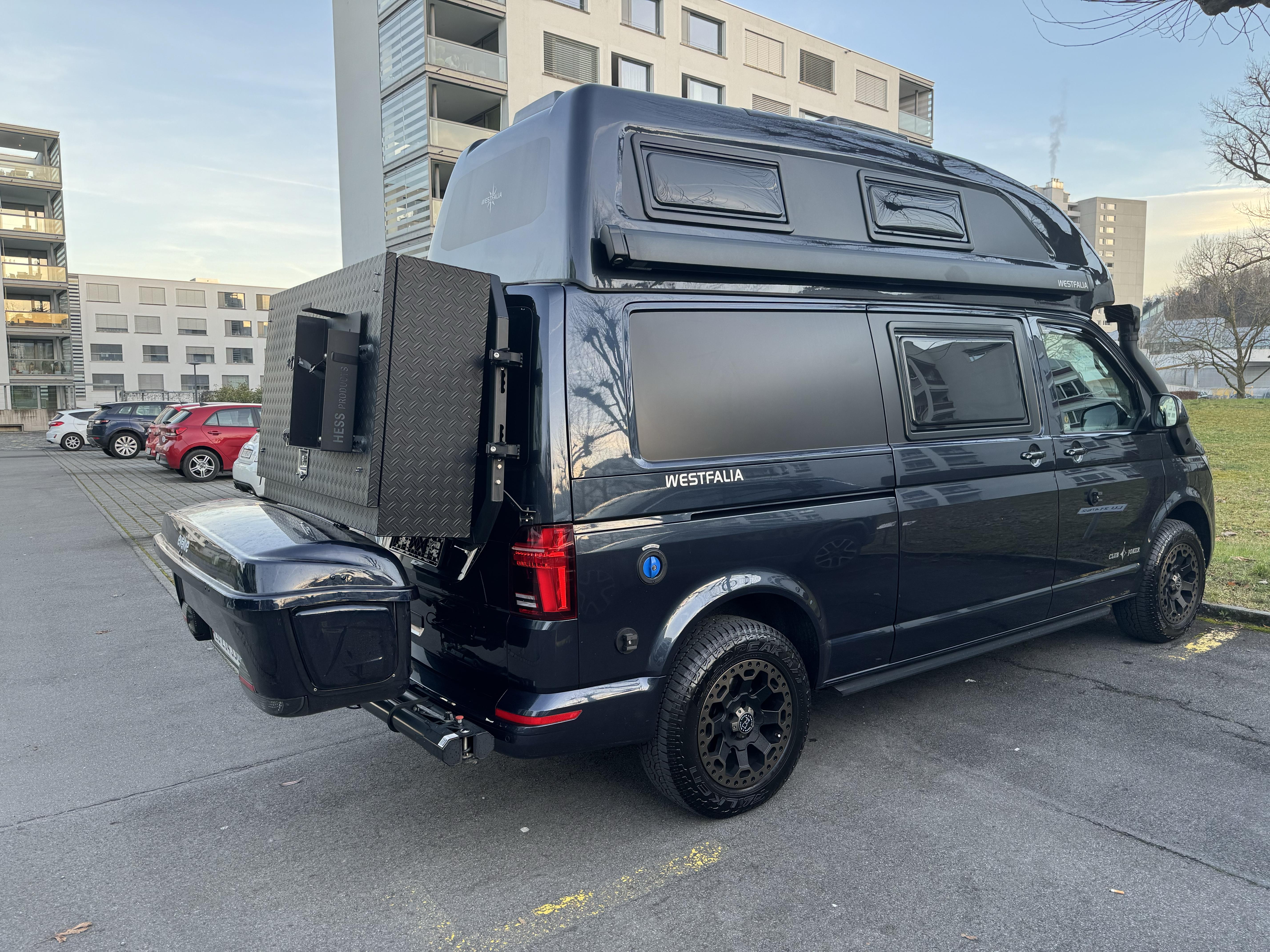

Added a Hess HeckBox XL

Just a question on this, do you still access the rear door or just leave it closed all the time? Imagine with a joker you can leave it shut?



[Webbah_in_Switzerland]

Just a question on this, do you still access the rear door or just leave it closed all the time? Imagine with a joker you can leave it shut?

I open the hatch all the time and it’s no issue. You get stronger struts to support the load.


Sent from my iPhone using Tapatalk



[Camperfamily]

These just arrived. Need to clean the van and test them tomorrow! @wildslammer22

Sent from my iPhone using Tapatalk

@Webbah_in_Switzerland What are these? Just curious



[wildslammer22]

@Webbah_in_Switzerland What are these? Just curious

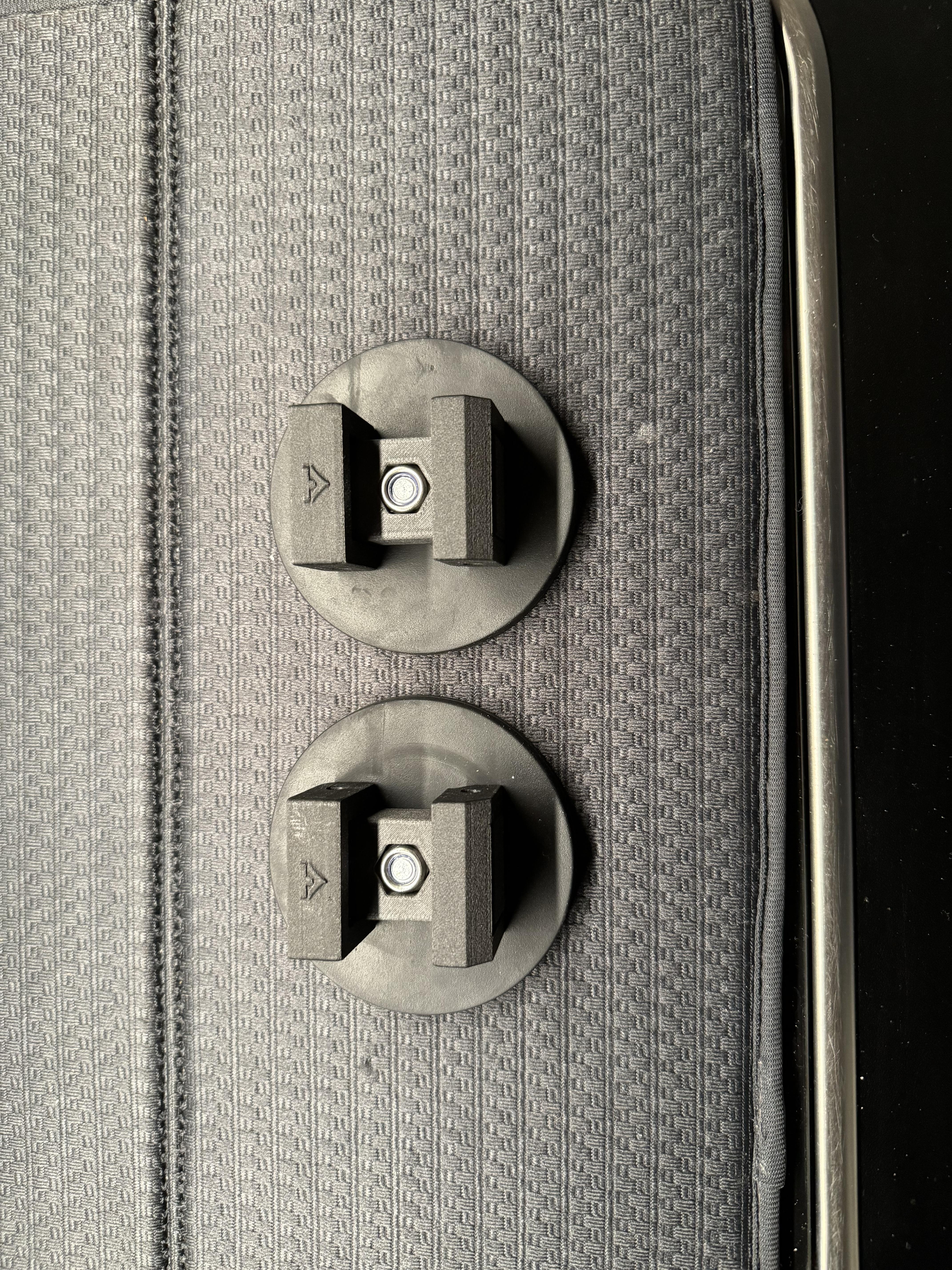

These are the magnets to attach the Cali awning legs to the side of the van. They work a treat, great for quick pitching the awning on hard ground where you can’t peg out. Also no legs as trip/dog lead hazard. I’ve tested it in 30mph gusts and it was solid with none of creaking you get when legs are pegged.


Sent from my iPad using Tapatalk



[wildslammer22]

@Webbah_in_Switzerland What are these? Just curious

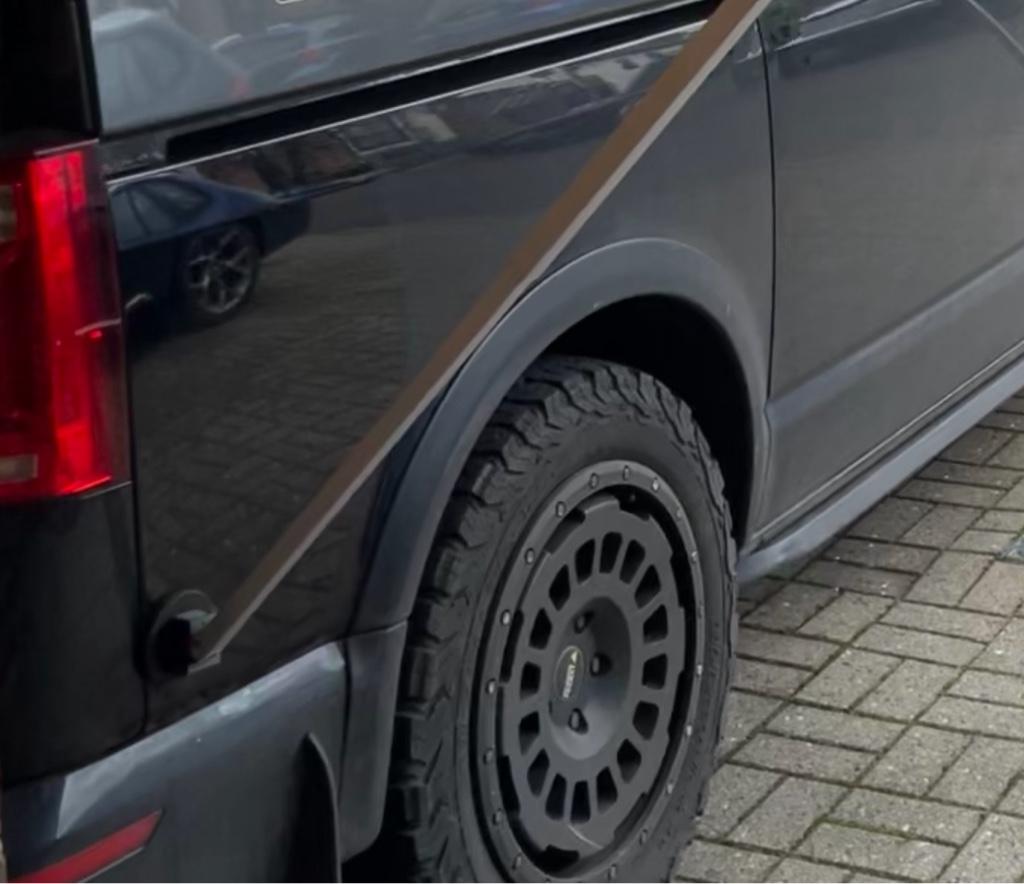

In action


Sent from my iPhone using Tapatalk



[Camperfamily]

@wildslammer22 sounds like a good solution. I might be a little wary about stress on the body panels in windy conditions. However, I can see the rear one is at the edge of the body panel, so seems low risk. Is the front one similar?



[CamperFam]

Just be mindful with the sliding door



[wildslammer22]

@wildslammer22 sounds like a good solution. I might be a little wary about stress on the body panels in windy conditions. However, I can see the rear one is at the edge of the body panel, so seems low risk. Is the front one similar?

Yes, I mount the front one at the bottom of the door panel in front of the door jamb so that’s equally solid as the rear clamp. No panel flex. Just have to make sure the bodywork is clean before you mount them!


Sent from my iPhone using Tapatalk



[wildslammer22]

Just be mindful with the sliding door

Indeed, you have to mount the rear one as per the photo to avoid fouling the sliding door. Although it could be useful for double locking troublesome toddlers in the van…


Sent from my iPhone using Tapatalk



[JuanVecino2023]

.Although it could be useful for double locking troublesome toddlers in the van…

Where can I buy a set…
